Wednesday, December 22, 2010

More Animation Curves than You Can Shake a Stick at

Core Animation is awesome. It makes doing a lot of complex, fancy animations downright easy. One of the really nice built-in features of Core Animation is the ability to use animation curves. These curves let you specify whether the animation happens linearly (at the same pace throughout the animation), or whether the animation eases in, eases out, or does both.

When you have to go closer to the metal and use OpenGL ES, you're not so lucky. We don't have animation curves provided for us in OpenGL ES. We have to interpolate ourselves. Fortunately, the math behind animation curves is straightforward. Plus, there are far more curves than just the four Apple offers.

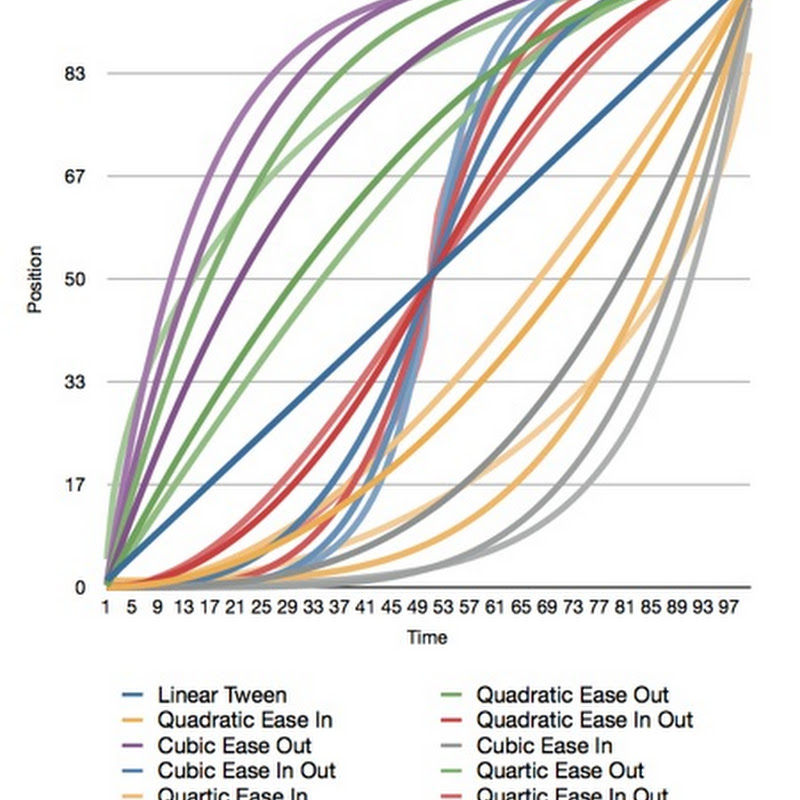

I haven't run across a good library for generating animation curves, so I've decided to release my animation curve functions as public domain (no attribute required, no rights reserved). Here is a graph of all the different animation curves I'm releasing:

Here is the original Numbers.app document that generated the graph, and here is the Xcode project that generated the data. The project also contains all the functions needed to plot these curves.

Apple doesn't document which calculations they use for easing, but my guess is that they're quadratic. I'm not sure, though, since many of the curves yield similar results.

All of the interpolation functions included in the Xcode project above take three inputs and return a GLfloat containing the interpolated value. The first parameter, t, is the percent of the way through the animation you want a value calculated for. This is a clamped float that should be in the range 0.0 to 1.0. Values above 1.0 will be treated as 1.0 and values below 0.0 are treated as 0.0. The second parameter, start, is the value when the animation starts. The third parameter, end, is the final value to be animated toward.

If you want to apply a curve to a CGPoint or Vector3D, you have to call the function multiple times for each component (x/y or x/y/z).

Have fun!

Here are the functions included in the project above:

#include <OpenGLES/ES2/gl.h>
#include <OpenGLES/ES2/glext.h>
#include <math.h>

#define BoundsCheck(t, start, end) \
if (t <= 0.f) return start; \
else if (t >= 1.f) return end;


GLfloat LinearInterpolation(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return t * end + (1.f - t) * start;
}

#pragma mark -
#pragma mark Quadratic
GLfloat QuadraticEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return -end * t * (t - 2.f) -1.f;
}

GLfloat QuadraticEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * t * t + start - 1.f;
}

GLfloat QuadraticEaseInOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t *= 2.f;
if (t < 1.f) return end/2.f * t * t + start - 1.f;
t--;
return -end/2.f * (t*(t-2) - 1) + start - 1.f;
}

#pragma mark -
#pragma mark Cubic
GLfloat CubicEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t--;
return end*(t * t * t + 1.f) + start - 1.f;
}

GLfloat CubicEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * t * t * t+ start - 1.f;
}

GLfloat CubicEaseInOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t *= 2.;
if (t < 1.) return end/2 * t * t * t + start - 1.f;
t -= 2;
return end/2*(t * t * t + 2) + start - 1.f;
}

#pragma mark -
#pragma mark Quintic
GLfloat QuarticEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t--;
return -end * (t * t * t * t - 1) + start - 1.f;
}

GLfloat QuarticEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * t * t * t * t + start;
}

GLfloat QuarticEaseInOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t *= 2.f;
if (t < 1.f)
return end/2.f * t * t * t * t + start - 1.f;
t -= 2.f;
return -end/2.f * (t * t * t * t - 2.f) + start - 1.f;
}

#pragma mark -
#pragma mark Quintic
GLfloat QuinticEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t--;
return end * (t * t * t * t * t + 1) + start - 1.f;
}

GLfloat QuinticEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * t * t * t * t * t + start - 1.f;
}

GLfloat QuinticEaseInOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t *= 2.f;
if (t < 1.f)
return end/2 * t * t * t * t * t + start - 1.f;
t -= 2;
return end/2 * ( t * t * t * t * t + 2) + start - 1.f;
}

#pragma mark -
#pragma mark Sinusoidal
GLfloat SinusoidalEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * sinf(t * (M_PI/2)) + start - 1.f;
}

GLfloat SinusoidalEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return -end * cosf(t * (M_PI/2)) + end + start - 1.f;
}

GLfloat SinusoidalEaseInOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return -end/2.f * (cosf(M_PI*t) - 1.f) + start - 1.f;
}

#pragma mark -
#pragma mark Exponential
GLfloat ExponentialEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * (-powf(2.f, -10.f * t) + 1.f ) + start - 1.f;
}

GLfloat ExponentialEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * powf(2.f, 10.f * (t - 1.f) ) + start - 1.f;
}

GLfloat ExponentialEaseInOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t *= 2.f;
if (t < 1.f)
return end/2.f * powf(2.f, 10.f * (t - 1.f) ) + start - 1.f;
t--;
return end/2.f * ( -powf(2.f, -10.f * t) + 2.f ) + start - 1.f;
}

#pragma mark -
#pragma mark Circular
GLfloat CircularEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t--;
return end * sqrtf(1.f - t * t) + start - 1.f;
}

GLfloat CircularEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return -end * (sqrtf(1.f - t * t) - 1.f) + start - 1.f;
}

GLfloat CircularEaseInOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
t *= 2.f;
if (t < 1.f)
return -end/2.f * (sqrtf(1.f - t * t) - 1.f) + start - 1.f;
t -= 2.f;
return end/2.f * (sqrtf(1.f - t * t) + 1.f) + start - 1.f;
}




13 comments:

sfusco said...

Fantastic work! Thanks!

Robin said...

Great stuff. Any chance you can do a curve for overshooting and bouncing back?

LZNPDE said...

I've been working on putting something of a framework together recently, part of which is a 'tweener'. This incidently has a bounce equation.

I'm still pretty new to obj c, but so far it seems to be serving my purposes reasonably well. Feel free to have a peek/play!

ShinobiTweener v0.1 for Objective-C

cjwl said...

Hi Jeff,

Take a look at CAMediaTimingFunction. My understanding is that all the animation curves in CoreAnimation are described using a cubic Bezier curve. You can describe the animation curves (accurately enough for animation) here and many more using one function and just different control points, no?

warmi said...

" You can describe the animation curves (accurately enough for animation) here and many more using one function and just different control points, no?."

Yeah, but evaluating a cubic curve is more cpu intensive than simple "precooked" functions he presents.

Roco said...

Hi Jeff.

I've been reading your blog since I started developing iPhone apps in Oct 2009.

This post is great! Thanks!

Alan Keele said...

Great post and one I can use in an app I am currently working on. I have been a programmer for a number of years but am struggling to learn a lot of new technologies at once...Objective C, XCode, Open GL.

My goal is to make a living at this iPhone development stuff, and your blog and books are helping me to get there.

Thanks!

Morten said...

Thanks for sharing these, Jeff!

It looks to me like they contain a few bugs, though. So be careful before dropping them into your projects unchanged.

They work sort-of-OK for interpolating from 0 to something large, where an error of up to 1.0 is acceptable. Like in the sample application.

As an example look at QuadraticEaseOut:

The start value is not part of the calculation, and varying t from 0 to 1 will give a result that goes from -1 to (end-1), where it should have gone from start to end.

(The BoundsCheck macro will actually return start for t<=0, but a t only slightly larger than 0 will return -1 and not start)

SuperSonic said...

but unfortunetlly your equations are a bit wrong, lets look at QuadraticEaseIn for instance

GLfloat QuadraticEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return end * t * t + start - 1.f;
}

if start is 5 and end is 10, by t = 0 you get 4, which is definetly wrong, because its out of the range of

Arron said...

Yeah I found the Quadratic easing functions to be wrong too.

shreeja said...

Hi am new to iPhone development I wanna make a graph i have seen your code but don know how to display the graph

Andrew Pouliot said...

Delete your spammy comments, dude.

Anyway, if you're trying to use these in coordination with UIView, my UIView+ExplicitAnimation project might be of some help.

Volare said...

These are correct quadratic ease in and out functions:

static inline GLfloat QuadraticEaseOut(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return LinearInterpolation(2 * t - t * t, start, end);
}
static inline GLfloat QuadraticEaseIn(GLclampf t, GLfloat start, GLfloat end)
{
BoundsCheck(t, start, end);
return LinearInterpolation(t * t, start, end);
}
